Complete 200A Repair Kit
Save 20% vs. buying separately
Available to order3-5 day lead time. Call to verify.
$1,058
Included componentIncluded components are shown individually. The compatible Cutler-Hammer C825KN10 Contactor - 200A 3-Pole appears only as a fitment reference and is not included. Confirm the exact contactor before ordering.
Coil, armature, magnet, and contact kit for the C825KN 200A contactor family.
Trane 200A Contactor Rebuild Kit
SKU: trane-repair-kit-200a
Major cards accepted
Bought separately: $1,365.00Kit saves $307.00 (22%)
Fitment, availability, and any warranty terms are confirmed before purchase.
Technical Specifications
- Fits Contactor
- C825KN
- Frame
- 200A
- Core Components
- Coil, contacts, armature, magnet
- Parts Listed
- 8
Product Details
What Is in the Box
The core renewal parts are grouped in one kit. Each part is also available individually.

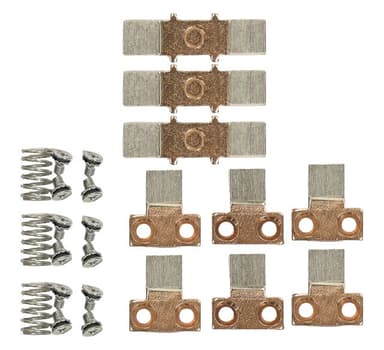

Cutler-Hammer Contact Kit (3-Pole)Part # 6-286
$410.00Replacement contacts and related renewal hardware for all three poles.
200A Operating Coil (120 / 240 / 480V)Part # 9-1891-1
$267.00Operating coil: the electromagnet that pulls the contactor in.
Cutler-Hammer Size 4/5 Armature 48-1029-4Part # 48-1029-4
$320.00Moving magnetic assembly. Inspect its mating surface when diagnosing chatter or poor pull-in.
Cutler-Hammer Size 4/5 Magnet 48-1030-2Part # 48-1030-2
$368.00Stationary magnetic assembly that mates with the armature.
Service Notes
Inspect more than the contacts
Chatter or poor pull-in can involve the coil, armature, magnet, contacts, or another part of the control circuit. Diagnose the equipment before replacing components.
Plan the service work
The kit groups the common renewal components so the required parts can be reviewed before the equipment is opened for service.
One cataloged kit
Coil, armature, magnet, and three-pole contact parts are listed together under one kit.
Full Parts Breakdown
Each part is also sold individually. All listed part numbers fit the C825KN 200A Cutler-Hammer contactor.
TypePart NumberTitle
Contact Kit6-286Cutler-Hammer Contact Kit (3-Pole)Coil9-1891-1Cutler-Hammer 9-1891-1 120V CoilCoil9-1891-2Cutler-Hammer 9-1891-2 240V CoilCoil9-1891-3Cutler-Hammer 9-1891-3 480V CoilAuxiliaryC320KGS42Cutler-Hammer C320KGS42 Base Auxiliary Contact - 1NO/1NCAuxiliaryC320KGS22Cutler-Hammer C320KGS22 Add-On Auxiliary Contact - 1NC/1NCArmature48-1029-4Cutler-Hammer Size 4/5 Armature 48-1029-4Magnet48-1030-2Cutler-Hammer Size 4/5 Magnet 48-1030-2Have the 360A contactor instead? View the 360A rebuild kit
Product Support
Confirm the kit before the service window.Send the contactor catalog number and coil voltage. We will confirm fitment, included parts, and current lead time.
