Indoor
NEMA 1 enclosure
Available to order3-5 day lead time. Call to verify.
$4,600
Square D model EE150T3H, 150 kVA, 3-phase, 480V delta primary to 208Y/120V secondary. Nameplate details and the offered unit are confirmed before purchase.

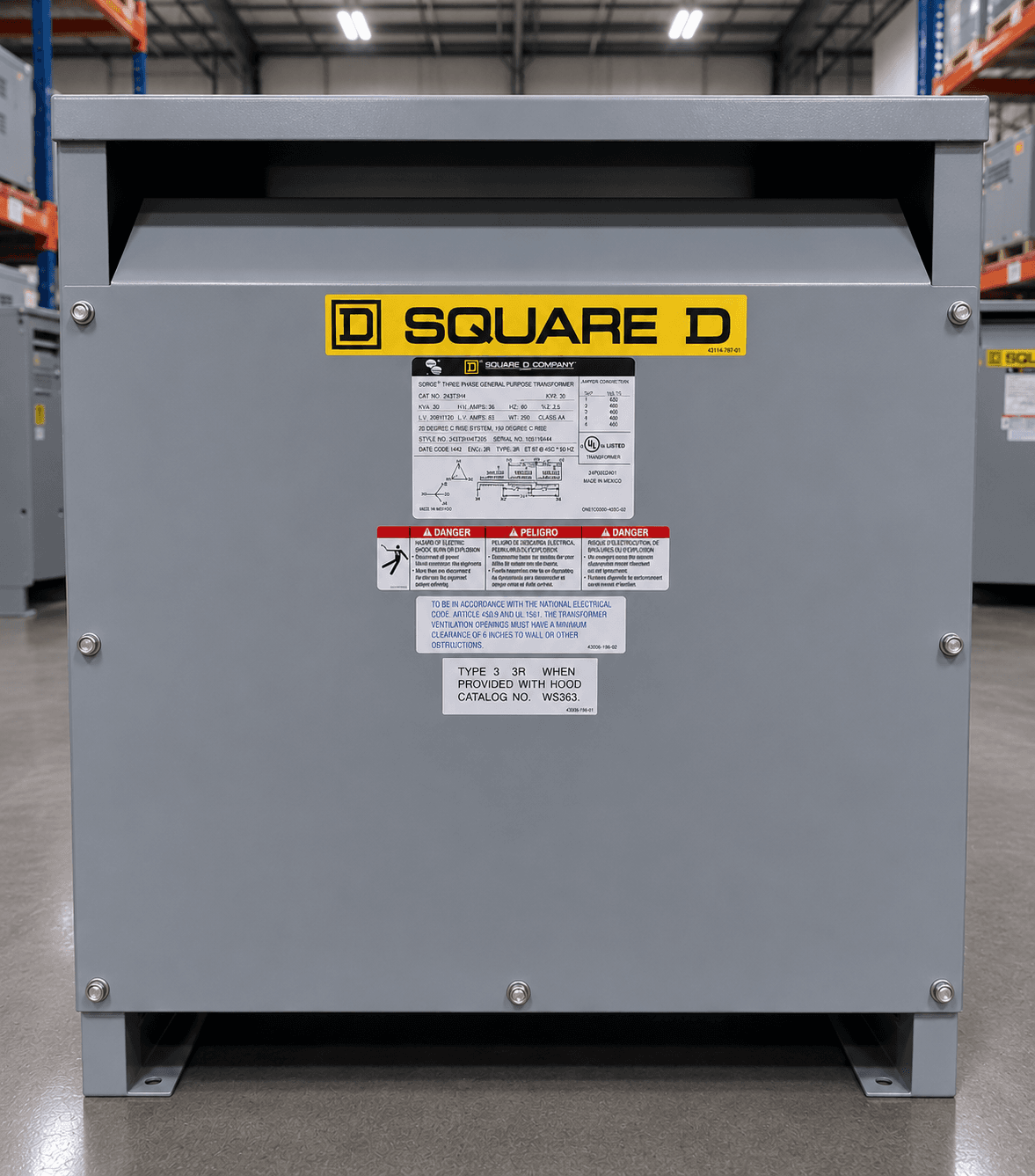

Square D 150 kVA Dry-Type Transformer: 480V to 208Y/120V, 3-Phase
SKU: EE150T3H
Outdoor
NEMA 3R, rain-tight
Available to order3-5 day lead time. Call to verify.
$4,945Lower-48 commercial freight is included in the listed price. Contact us to confirm the current delivery window.
Technical Specifications
- Capacity
- 150 kVA
- Square D Model
- EE150T3H
- Phase
- 3-phase
- Input
- 480V delta
- Output
- 208Y/120V
- Enclosure
- 22D
Product Details
Product Overview
Square D EE150T3H energy-efficient dry-type transformer, 150 kVA, 3-phase, 480V delta primary to 208Y/120V secondary. 98.3% efficiency, 6.0% impedance, 50 dB sound level. Surplus, ready to ship.
Additional Technical Details
Square D model EE150T3H, 150 kVA, 3-phase, 480V delta primary to 208Y/120V secondary. Confirm the offered unit's nameplate and markings before purchase.
- Type
- Dry-type, energy efficient general purpose step-down transformer
- Frequency
- 60 Hz
- Winding configuration
- Delta-Wye
- Primary taps
- 6-2.5% taps, 2 above and 4 below nominal
- Insulation class
- Class H, 220 C
- Temperature rise
- 150 C over 40 C ambient
- Cooling
- AA, natural air, self-cooled
- Efficiency
- 98.3% minimum at 35% load, 75 C
- Impedance
- 6.0%
- Sound level
- 50 dB
- Height
- 46"
- Width
- 35"
- Depth
- 35"
- Weight
- 960 lb
Product Resources
Purchase Support
Model and lead timeConfirmed before payment.
Condition and coverageStated in writing for the offered unit.
Freight coordinationArranged for your commercial location.
Confirm the transformer configuration before purchase.Share the catalog number, enclosure requirement, destination ZIP code, and commercial receiving details.
